Machine Learning Models Exercise

Author

Rachel Robertson

Published

March 28, 2024

Preparation

We will start by loading the packages we need, setting the seed to 1234, and loading the cleaned version of the Mavoglurant trial data.

# Load packages
library(tidymodels) # use tidymodels framework
library(ggplot2) # producing visual displays of data
library(dplyr) # manipulating and cleaning data
library(here) # making relative pathways
library(glmnet) # for LASSO regression engine
library(ranger) # making random forest model
library(doParallel) # for parallel processing
library(rsample) # for cross validation

# Set seed
rngseed <- 1234 # 1234 = rngseed
set.seed(rngseed)

# Load data
data_location <- here::here("ml-models-exercise","cleandata.rds")
data <- readRDS(data_location)
str(data)

'data.frame':   120 obs. of  7 variables:
 $ Y   : num  2691 2639 2150 1789 3126 ...
 $ DOSE: num  25 25 25 25 25 25 25 25 25 25 ...
 $ AGE : num  42 24 31 46 41 27 23 20 23 28 ...
 $ SEX : Factor w/ 2 levels "1","2": 1 1 1 2 2 1 1 1 1 1 ...
 $ RACE: Factor w/ 4 levels "1","2","7","88": 2 2 1 1 2 2 1 4 2 1 ...
 $ WT  : num  94.3 80.4 71.8 77.4 64.3 ...
 $ HT  : num  1.77 1.76 1.81 1.65 1.56 ...

Data cleaning

The previous analysis excluded SEX, but we want to include this variable for this portion of analysis. We also have two odd levels in the factor variable, race, which are called 7 and 88. To discover how to handle this variable we must explore to find what these levels stand for. In my previous exploratory analysis, I noticed that the races 7 and 88 were different depending on age (where 7 included those less than 40 years of age and 88 included those older than 40 years of age). For this reason I will stratify race by age. I will then stratify race by sex to determine if there are any further differences that I might be missing. Sex was shown to be associated with height and body weight in the exploratory analysis and I do not know an arbitrary cutoff for this variables, so I will not use them to stratify.

# Stratify RACE by AGE
# Define age groups of under 40 and over 40
data$AGEcat <- ifelse(data$AGE <= 40, "<=40", ">40")

# Use by() to stratify the race variable by age and find the summary
RaceAge_summary <- by(data$RACE, data$AGEcat, summary)

# Printing the summary statistics
RaceAge_summary

data$AGEcat: <=40
 1  2  7 88
53 29  0  8
------------------------------------------------------------
data$AGEcat: >40
 1  2  7 88
21  7  2  0

data <- subset(data, select = -AGEcat) # remove the AGEcat variable from the original data frame

# Stratify RACE by SEX
RaceSex_summary <- by(data$RACE, data$SEX, summary)
RaceSex_summary

data$SEX: 1
 1  2  7 88
63 33  1  7
------------------------------------------------------------
data$SEX: 2
 1  2  7 88
11  3  1  1

The summary statistics (counts of RACE for each AGE category and SEX) show that 7 and 88 are in two different age categories. This may indicate that they represent the same race, but divided by those who are <=40 years old and those who are >40 years old. Because of this, we will group the factor levels (7 and 88) or race, together.

# Combining RACE levels 7 and 88
data$RACE <- factor(ifelse(data$RACE %in% c(7, 88), 3, data$RACE)) # combine levels 7 and 88 of the factor variable RACE into one level called 3 using the ifelse() function
str(data$RACE) # check the data structure to ensure that they were combined

 Factor w/ 3 levels "1","2","3": 2 2 1 1 2 2 1 3 2 1 ...

# Correlation Plot
pairs(data[, c("WT", "HT", "AGE", "Y")], # use pairs() to find pairwise correlation for continuous variables
      labels = c("WT", "HT", "AGE", "Y"), # specify the labels for each variable
      main = "Correlation Plot", # Title of the plot
      row1attop = FALSE, # Default behavior for the direction of the diagonal
      gap = 1, # Distance between subplots
      cex.labels = NULL,# Size of the diagonal text (default)
      font.labels = 1) # Font style of the diagonal text

# correlation coefficients

matrix <- cor(data[, c("WT", "HT", "AGE", "Y")]) # use cor() function to make a correlation matrix for the specified continuous
print(matrix) # Print the correlation matrix

            WT         HT         AGE           Y
WT   1.0000000  0.5997505  0.11967399 -0.21287194
HT   0.5997505  1.0000000 -0.35185806 -0.15832972
AGE  0.1196740 -0.3518581  1.00000000  0.01256372
Y   -0.2128719 -0.1583297  0.01256372  1.00000000

As shown by the correlation matrix and plot, there is a moderate correlation between weight and height but no other continuous variables show correlation. Because of this, we want to combine these two correlated variables for weight and height into one variable for body mass index (BMI). BMI is calculated by dividing a person’s weight in kg by height in meters squared. We do not know the units for height or weight used int eh study so we will look at the data to try and figure this out.

# Summary of the data
summary(data)

       Y               DOSE            AGE        SEX     RACE
 Min.   : 826.4   Min.   :25.00   Min.   :18.00   1:104   1:74
 1st Qu.:1700.5   1st Qu.:25.00   1st Qu.:26.00   2: 16   2:36
 Median :2349.1   Median :37.50   Median :31.00           3:10
 Mean   :2445.4   Mean   :36.46   Mean   :33.00
 3rd Qu.:3050.2   3rd Qu.:50.00   3rd Qu.:40.25
 Max.   :5606.6   Max.   :50.00   Max.   :50.00
       WT               HT
 Min.   : 56.60   Min.   :1.520
 1st Qu.: 73.17   1st Qu.:1.700
 Median : 82.10   Median :1.770
 Mean   : 82.55   Mean   :1.759
 3rd Qu.: 90.10   3rd Qu.:1.813
 Max.   :115.30   Max.   :1.930

# It looks like height is in meters and weight is in kg in this case

# Calculate BMI
data <- mutate(data, BMI = WT/(HT^2)) # use mutate() from dpylr to add a new variable to the data frame using preexisting columns
str(data$BMI) # check structure of the BMI variable

 num [1:120] 30.1 26 21.9 28.4 26.4 ...

Modeling

I will produce three machine learning models of this cleaned data. The first will be a linear regression model, similar to the one done for the model fitting exercise. Next, I will do a LASSO regression and finally, a random forest (RF) model. Instead of splitting the data into training and testing groups, we will perform cross validation (CV) at the end to check model performance. ## First Fit

set.seed(rngseed) # set seed for reproducibility

# Linear Regression
glm_recipe <-
  recipe(Y ~ ., data = data) # specify the recipe by putting the formula for the linear model with all the predictors

glm_model <- linear_reg() %>% # make object for the model function
  set_engine("lm") %>% # Use linear regression engine lm
  set_mode("regression") # and also, set to regression mode

glm_workflow <- workflow() %>% # create a workflow
  add_model(glm_model) %>% # apply linear regression model
  add_recipe(glm_recipe) # then, apply the recipe

glm_fit <-
  glm_workflow %>% # add the workflow to the fit
  fit(data = data) # fit to the whole data set
tidy(glm_fit) # produce tibble to organize the resulting linear regression fit

# A tibble: 9 × 5
  term         estimate std.error statistic  p.value
  <chr>           <dbl>     <dbl>     <dbl>    <dbl>
1 (Intercept)  32051.    10161.       3.15  2.07e- 3
2 DOSE            59.1       4.73    12.5   6.22e-23
3 AGE              4.53      7.47     0.607 5.45e- 1
4 SEX2          -435.      210.      -2.07  4.06e- 2
5 RACE2          158.      124.       1.27  2.07e- 1
6 RACE3         -258.      215.      -1.20  2.33e- 1
7 WT             145.       59.5      2.45  1.60e- 2
8 HT          -16840.     5728.      -2.94  4.00e- 3
9 BMI           -536.      188.      -2.85  5.20e- 3

# LASSO Regression
## I used a tidytuesday example and stack overflow to create this LASSO regression
lasso_rec <- recipe(Y ~ ., data = data) %>% # create recipe containing all predictors
  step_zv(all_numeric(), -all_outcomes()) %>% # removes non-zero variance variables of predictors (not outcomes)
  step_scale(all_numeric(), -all_outcomes(), -all_nominal()) %>% # regularizes numerical variables
  step_dummy(all_nominal()) # makes factor variables dummy variables

lasso_prep <- lasso_rec %>%
  prep() # ensures that strings are not converted into factors, call prep to prepare the recipe for fitting
lasso_spec <- linear_reg(penalty = 0.1, mixture = 1) %>% # gives a L1 penalty to the variables
  set_engine("glmnet") # set engine for LASSO regression

lasso_wf <- workflow() %>%
  add_recipe(lasso_rec) # apply the recipe to a lasso workflow

lasso_fit <- lasso_wf %>% # fit the model using the specs that were specified above
  add_model(lasso_spec) %>%
  fit(data = data) # fit to all data

lasso_fit %>%
  extract_fit_parsnip() %>% # extract the fit and use tidy() to produce a tibble
  tidy()

# A tibble: 9 × 3
  term        estimate penalty
  <chr>          <dbl>   <dbl>
1 (Intercept)  30579.      0.1
2 DOSE           702.      0.1
3 AGE             39.7     0.1
4 WT            1713.      0.1
5 HT           -1369.      0.1
6 BMI          -1627.      0.1
7 SEX_X2        -431.      0.1
8 RACE_X2        158.      0.1
9 RACE_X3       -251.      0.1

# Random Forest (RF) Model
rf_rec <- recipe( Y ~ ., data = data) # use full model as recipe for the random forest model

rf_model <- rand_forest()%>% # use rand_forest() to make a random forest model
  set_engine("ranger", seed = rngseed)%>% # set engine to ranger with the same seed for reproducibility
  set_mode("regression")%>% # set to regression mode
  translate()

rf_workflow <- workflow() %>% # create workflow for rf model
  add_recipe(rf_rec)%>% # apply recipe
  add_model(rf_model) # apply model

rf_fit <- rf_workflow%>%
  fit(data = data) # use the workflow to fit the rf model to the data
rf_fit # print fit (there is no tidy method for ranger)

══ Workflow [trained] ══════════════════════════════════════════════════════════
Preprocessor: Recipe
Model: rand_forest()

── Preprocessor ────────────────────────────────────────────────────────────────
0 Recipe Steps

── Model ───────────────────────────────────────────────────────────────────────
Ranger result

Call:
 ranger::ranger(x = maybe_data_frame(x), y = y, seed = ~rngseed,      num.threads = 1, verbose = FALSE)

Type:                             Regression
Number of trees:                  500
Sample size:                      120
Number of independent variables:  7
Mtry:                             2
Target node size:                 5
Variable importance mode:         none
Splitrule:                        variance
OOB prediction error (MSE):       497625.2
R squared (OOB):                  0.4618768

Predictions

Now that I have fit a linear regression, LASSO regression, and random forest model, I will use each model to make predictions and find the RMSE for each model.

# Making Predictions and Computing RMSE
## Linear regression
glm_aug <- augment(glm_fit, data) # add glm predictions to an augmented data frame
glm_rmse <- rmse(data = glm_aug, # compute rmse based on Y expected values and .pred as the estimate
                 truth = Y,
                 estimate = .pred)
print(glm_rmse)

# A tibble: 1 × 3
  .metric .estimator .estimate
  <chr>   <chr>          <dbl>
1 rmse    standard        572.

## LASSO regression
lasso_aug <- augment(lasso_fit, data)
lasso_rmse <- rmse(data = lasso_aug,
                   truth = Y,
                   estimate = .pred)
print(lasso_rmse)

# A tibble: 1 × 3
  .metric .estimator .estimate
  <chr>   <chr>          <dbl>
1 rmse    standard        572.

## Rf model
rf_aug <- augment(rf_fit, data)
rf_rmse <- rmse(data = rf_aug,
                truth = Y,
                estimate = .pred)
print(rf_rmse)

# A tibble: 1 × 3
  .metric .estimator .estimate
  <chr>   <chr>          <dbl>
1 rmse    standard        362.

We see that the RMSE is very similar for the linear regression and LASSO regression (approx. 572), but the RMSE for the random forest model is much lower (approx. 362). To visualize why this may be, we will produce a plot of the outcome (Y) and predicted values to compare each model.

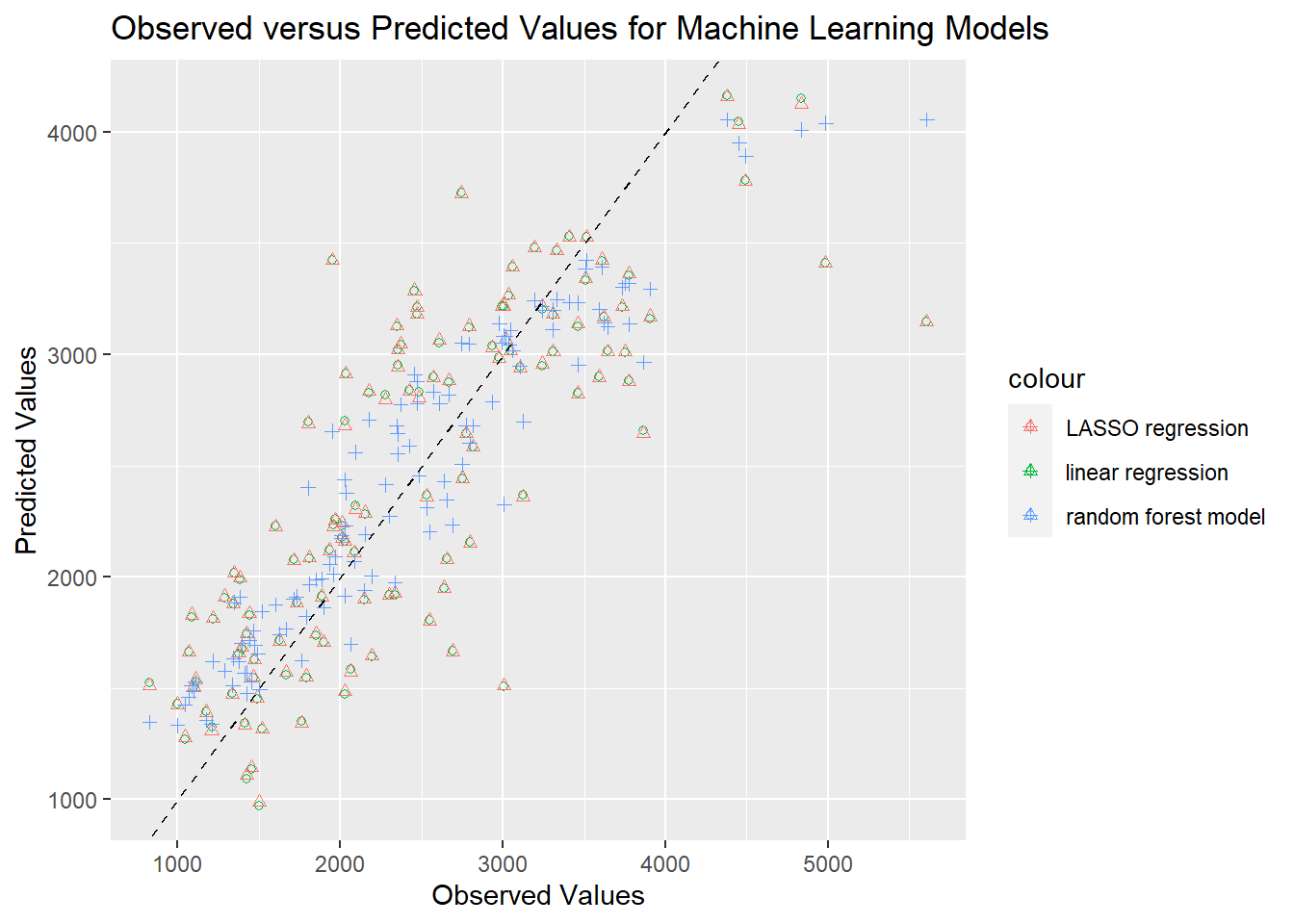

# Predicted versus Observed plot
## Add data to one data frame
plot_data <- data.frame(
  observed = c(data$Y), # Add observed value from original data frame
  glm_predictions = c(glm_aug$.pred), # add predicted values from each model
  lasso_predictions = c(lasso_aug$.pred),
  rf_predictions = c(rf_aug$.pred),
  model = rep(c("linear regression", "LASSO regression", "random forest model"), each = nrow(data))) # add labels to indicate the model
plot_data

    observed glm_predictions lasso_predictions rf_predictions
1    2690.52        1666.292         1665.4951       2232.979
2    2638.81        1951.072         1951.1483       2430.801
3    2149.61        1895.868         1901.2942       1939.346
4    1788.89        1548.332         1553.1011       1822.306
5    3126.37        2369.123         2358.0298       2698.249
6    2336.89        1920.740         1928.6044       1973.672
7    3007.20        1509.739         1512.5443       2325.846
8    2795.65        2155.512         2154.3831       2599.931
9    3865.79        2657.661         2643.6228       2965.019
10   1761.62        1352.351         1344.5900       1625.177
11   2548.98        1805.393         1804.1869       2202.179
12   1967.61        2261.963         2254.6162       2090.828
13   2352.78        2951.773         2941.5741       2644.115
14   1800.79        2695.525         2690.2208       2401.978
15   2009.16        2231.317         2243.1548       2172.702
16   2815.26        2582.599         2583.4456       2679.755
17   2008.52        2178.308         2174.3373       2186.277
18   2933.99        3036.928         3028.9858       2785.677
19   2748.86        2441.214         2444.1440       2504.647
20   2154.56        2282.657         2287.9142       2191.959
21   3462.59        2828.334         2824.4177       2953.546
22   2771.69        2644.227         2643.7206       2680.456
23   2423.89        2838.265         2834.5916       2588.795
24   2084.87        2114.951         2110.2089       2070.711
25   4984.57        3410.684         3409.2691       4038.573
26   2572.45        2900.071         2896.7632       2832.323
27   2667.02        2874.575         2883.4645       2819.265
28   3004.21        3216.289         3218.0471       3082.765
29   4834.65        4147.945         4122.1679       4007.517
30   5606.58        3146.586         3148.0269       4054.842
31   3408.61        3530.487         3528.5769       3234.727
32   4493.01        3782.900         3775.9116       3892.084
33   3513.71        3527.580         3527.0090       3423.537
34   3905.93        3161.522         3169.9729       3293.157
35   3644.37        3014.873         3012.9266       3124.347
36   2746.20        3725.436         3723.5112       3050.665
37   1424.00        1092.137         1110.2174       1476.492
38   1108.17        1528.406         1540.3575       1529.187
39   3104.70        2944.451         2940.3125       2946.628
40   2177.20        2828.179         2836.5662       2706.864
41   2193.20        1641.498         1644.6901       2004.379
42   1810.59        2081.464         2087.8279       1967.067
43   1666.10        1561.426         1571.5568       1766.751
44   2027.39        1472.311         1485.0501       1915.456
45   2345.50        3126.133         3130.0769       2679.027
46   3310.20        3011.772         3010.9532       3199.220
47   3777.20        2884.511         2878.4614       3136.643
48   2063.43        1585.373         1574.7557       1698.501
49   4378.37        4164.254         4157.3127       4054.339
50   1853.91        1737.577         1745.8276       1987.378
51   3774.00        3354.137         3362.0251       3318.810
52   1625.46        1713.675         1712.9939       1742.316
53   1044.07        1271.445         1280.7092       1426.413
54   1423.70        1745.834         1747.0350       1570.035
55   3037.39        3264.513         3267.4854       3043.601
56   2610.00        3052.354         3062.8884       2781.194
57   3193.98        3480.765         3479.9722       3243.305
58   1602.63        2229.188         2225.4512       1875.574
59   2457.68        3285.181         3286.8230       2909.370
60   1474.60        1628.706         1627.3779       1694.544
61    997.89        1431.588         1427.4710       1333.704
62   4451.84        4047.461         4033.0282       3949.126
63   3507.10        3331.287         3341.3703       3386.129
64   3332.16        3467.620         3467.6341       3246.643
65   3733.10        3212.679         3214.1497       3301.496
66   1886.48        1912.787         1911.9204       1990.796
67   1175.69        1396.002         1393.0632       1358.239
68   1517.24        1317.045         1317.1867       1844.712
69   2036.20        2915.041         2912.1504       2377.633
70   2532.10        2368.507         2361.6117       2310.721
71   1392.78        1676.221         1685.1243       1702.797
72   2372.70        3041.284         3046.3185       2774.527
73   3239.66        3202.876         3215.3041       3214.149
74   1935.24        2122.539         2119.2763       2058.760
75   1344.35        1878.455         1881.7958       1634.292
76   1411.57        1344.244         1335.8715       1567.756
77   1712.00        2077.625         2074.0122       1901.206
78   2978.20        2986.220         2982.9972       3139.730
79   1948.80        3423.391         3424.1980       2655.798
80   1346.62        2019.387         2017.6645       1885.764
81   1380.61        1989.205         1995.6376       1909.081
82   1214.97        1812.490         1813.0534       1622.279
83   3622.80        3168.300         3167.6889       3141.464
84   3751.90        3009.375         3010.7492       3320.045
85   2092.89        2321.030         2303.7623       2559.630
86   3458.43        3123.946         3137.0371       3232.131
87   2789.70        3120.812         3127.2381       3047.259
88   2303.58        1917.330         1916.9827       2275.298
89   2030.50        2162.061         2159.5244       2229.379
90   1439.57        1826.728         1837.5538       1717.227
91   2471.60        3181.973         3180.8807       2877.682
92   1097.60        1503.438         1509.1215       1486.931
93   1464.29        1547.889         1550.2984       1758.278
94   3243.29        2949.707         2958.3391       3196.397
95   2654.70        2081.760         2079.6383       2346.054
96   3609.33        3418.077         3425.6590       3391.887
97   3060.70        3392.820         3394.4500       3017.696
98   1374.48        1656.248         1660.0135       1621.747
99   1451.50        1135.461         1144.7828       1530.642
100  1503.55         973.785          989.8539       1494.118
101  2027.60        2702.367         2678.7908       2437.125
102  3046.72        3015.803         3016.9165       3108.418
103  2485.00        2830.571         2806.4608       2455.151
104  1731.80        1883.050         1884.5676       1911.827
105  1958.27        2232.296         2225.3000       2012.805
106  2996.40        3213.626         3215.4839       3053.526
107  1288.64        1907.697         1912.3864       1578.546
108  2353.40        3020.431         3019.9432       2552.630
109  3016.30        3063.343         3066.8408       3082.212
110  3306.15        3176.953         3179.4228       3111.106
111   826.43        1525.419         1513.5919       1348.316
112  1338.20        1478.099         1472.6168       1513.226
113  1490.93        1452.322         1458.1048       1654.928
114  1067.56        1661.808         1662.6232       1460.740
115  2472.90        3210.084         3211.9609       2781.050
116  1085.93        1819.709         1830.0230       1511.110
117  2278.97        2816.581         2796.2701       2414.965
118  1898.00        1704.732         1704.9722       1863.288
119  1208.74        1325.510         1309.4964       1337.491
120  3593.55        2899.403         2897.9885       3200.940
121  2690.52        1666.292         1665.4951       2232.979
122  2638.81        1951.072         1951.1483       2430.801
123  2149.61        1895.868         1901.2942       1939.346
124  1788.89        1548.332         1553.1011       1822.306
125  3126.37        2369.123         2358.0298       2698.249
126  2336.89        1920.740         1928.6044       1973.672
127  3007.20        1509.739         1512.5443       2325.846
128  2795.65        2155.512         2154.3831       2599.931
129  3865.79        2657.661         2643.6228       2965.019
130  1761.62        1352.351         1344.5900       1625.177
131  2548.98        1805.393         1804.1869       2202.179
132  1967.61        2261.963         2254.6162       2090.828
133  2352.78        2951.773         2941.5741       2644.115
134  1800.79        2695.525         2690.2208       2401.978
135  2009.16        2231.317         2243.1548       2172.702
136  2815.26        2582.599         2583.4456       2679.755
137  2008.52        2178.308         2174.3373       2186.277
138  2933.99        3036.928         3028.9858       2785.677
139  2748.86        2441.214         2444.1440       2504.647
140  2154.56        2282.657         2287.9142       2191.959
141  3462.59        2828.334         2824.4177       2953.546
142  2771.69        2644.227         2643.7206       2680.456
143  2423.89        2838.265         2834.5916       2588.795
144  2084.87        2114.951         2110.2089       2070.711
145  4984.57        3410.684         3409.2691       4038.573
146  2572.45        2900.071         2896.7632       2832.323
147  2667.02        2874.575         2883.4645       2819.265
148  3004.21        3216.289         3218.0471       3082.765
149  4834.65        4147.945         4122.1679       4007.517
150  5606.58        3146.586         3148.0269       4054.842
151  3408.61        3530.487         3528.5769       3234.727
152  4493.01        3782.900         3775.9116       3892.084
153  3513.71        3527.580         3527.0090       3423.537
154  3905.93        3161.522         3169.9729       3293.157
155  3644.37        3014.873         3012.9266       3124.347
156  2746.20        3725.436         3723.5112       3050.665
157  1424.00        1092.137         1110.2174       1476.492
158  1108.17        1528.406         1540.3575       1529.187
159  3104.70        2944.451         2940.3125       2946.628
160  2177.20        2828.179         2836.5662       2706.864
161  2193.20        1641.498         1644.6901       2004.379
162  1810.59        2081.464         2087.8279       1967.067
163  1666.10        1561.426         1571.5568       1766.751
164  2027.39        1472.311         1485.0501       1915.456
165  2345.50        3126.133         3130.0769       2679.027
166  3310.20        3011.772         3010.9532       3199.220
167  3777.20        2884.511         2878.4614       3136.643
168  2063.43        1585.373         1574.7557       1698.501
169  4378.37        4164.254         4157.3127       4054.339
170  1853.91        1737.577         1745.8276       1987.378
171  3774.00        3354.137         3362.0251       3318.810
172  1625.46        1713.675         1712.9939       1742.316
173  1044.07        1271.445         1280.7092       1426.413
174  1423.70        1745.834         1747.0350       1570.035
175  3037.39        3264.513         3267.4854       3043.601
176  2610.00        3052.354         3062.8884       2781.194
177  3193.98        3480.765         3479.9722       3243.305
178  1602.63        2229.188         2225.4512       1875.574
179  2457.68        3285.181         3286.8230       2909.370
180  1474.60        1628.706         1627.3779       1694.544
181   997.89        1431.588         1427.4710       1333.704
182  4451.84        4047.461         4033.0282       3949.126
183  3507.10        3331.287         3341.3703       3386.129
184  3332.16        3467.620         3467.6341       3246.643
185  3733.10        3212.679         3214.1497       3301.496
186  1886.48        1912.787         1911.9204       1990.796
187  1175.69        1396.002         1393.0632       1358.239
188  1517.24        1317.045         1317.1867       1844.712
189  2036.20        2915.041         2912.1504       2377.633
190  2532.10        2368.507         2361.6117       2310.721
191  1392.78        1676.221         1685.1243       1702.797
192  2372.70        3041.284         3046.3185       2774.527
193  3239.66        3202.876         3215.3041       3214.149
194  1935.24        2122.539         2119.2763       2058.760
195  1344.35        1878.455         1881.7958       1634.292
196  1411.57        1344.244         1335.8715       1567.756
197  1712.00        2077.625         2074.0122       1901.206
198  2978.20        2986.220         2982.9972       3139.730
199  1948.80        3423.391         3424.1980       2655.798
200  1346.62        2019.387         2017.6645       1885.764
201  1380.61        1989.205         1995.6376       1909.081
202  1214.97        1812.490         1813.0534       1622.279
203  3622.80        3168.300         3167.6889       3141.464
204  3751.90        3009.375         3010.7492       3320.045
205  2092.89        2321.030         2303.7623       2559.630
206  3458.43        3123.946         3137.0371       3232.131
207  2789.70        3120.812         3127.2381       3047.259
208  2303.58        1917.330         1916.9827       2275.298
209  2030.50        2162.061         2159.5244       2229.379
210  1439.57        1826.728         1837.5538       1717.227
211  2471.60        3181.973         3180.8807       2877.682
212  1097.60        1503.438         1509.1215       1486.931
213  1464.29        1547.889         1550.2984       1758.278
214  3243.29        2949.707         2958.3391       3196.397
215  2654.70        2081.760         2079.6383       2346.054
216  3609.33        3418.077         3425.6590       3391.887
217  3060.70        3392.820         3394.4500       3017.696
218  1374.48        1656.248         1660.0135       1621.747
219  1451.50        1135.461         1144.7828       1530.642
220  1503.55         973.785          989.8539       1494.118
221  2027.60        2702.367         2678.7908       2437.125
222  3046.72        3015.803         3016.9165       3108.418
223  2485.00        2830.571         2806.4608       2455.151
224  1731.80        1883.050         1884.5676       1911.827
225  1958.27        2232.296         2225.3000       2012.805
226  2996.40        3213.626         3215.4839       3053.526
227  1288.64        1907.697         1912.3864       1578.546
228  2353.40        3020.431         3019.9432       2552.630
229  3016.30        3063.343         3066.8408       3082.212
230  3306.15        3176.953         3179.4228       3111.106
231   826.43        1525.419         1513.5919       1348.316
232  1338.20        1478.099         1472.6168       1513.226
233  1490.93        1452.322         1458.1048       1654.928
234  1067.56        1661.808         1662.6232       1460.740
235  2472.90        3210.084         3211.9609       2781.050
236  1085.93        1819.709         1830.0230       1511.110
237  2278.97        2816.581         2796.2701       2414.965
238  1898.00        1704.732         1704.9722       1863.288
239  1208.74        1325.510         1309.4964       1337.491
240  3593.55        2899.403         2897.9885       3200.940
241  2690.52        1666.292         1665.4951       2232.979
242  2638.81        1951.072         1951.1483       2430.801
243  2149.61        1895.868         1901.2942       1939.346
244  1788.89        1548.332         1553.1011       1822.306
245  3126.37        2369.123         2358.0298       2698.249
246  2336.89        1920.740         1928.6044       1973.672
247  3007.20        1509.739         1512.5443       2325.846
248  2795.65        2155.512         2154.3831       2599.931
249  3865.79        2657.661         2643.6228       2965.019
250  1761.62        1352.351         1344.5900       1625.177
251  2548.98        1805.393         1804.1869       2202.179
252  1967.61        2261.963         2254.6162       2090.828
253  2352.78        2951.773         2941.5741       2644.115
254  1800.79        2695.525         2690.2208       2401.978
255  2009.16        2231.317         2243.1548       2172.702
256  2815.26        2582.599         2583.4456       2679.755
257  2008.52        2178.308         2174.3373       2186.277
258  2933.99        3036.928         3028.9858       2785.677
259  2748.86        2441.214         2444.1440       2504.647
260  2154.56        2282.657         2287.9142       2191.959
261  3462.59        2828.334         2824.4177       2953.546
262  2771.69        2644.227         2643.7206       2680.456
263  2423.89        2838.265         2834.5916       2588.795
264  2084.87        2114.951         2110.2089       2070.711
265  4984.57        3410.684         3409.2691       4038.573
266  2572.45        2900.071         2896.7632       2832.323
267  2667.02        2874.575         2883.4645       2819.265
268  3004.21        3216.289         3218.0471       3082.765
269  4834.65        4147.945         4122.1679       4007.517
270  5606.58        3146.586         3148.0269       4054.842
271  3408.61        3530.487         3528.5769       3234.727
272  4493.01        3782.900         3775.9116       3892.084
273  3513.71        3527.580         3527.0090       3423.537
274  3905.93        3161.522         3169.9729       3293.157
275  3644.37        3014.873         3012.9266       3124.347
276  2746.20        3725.436         3723.5112       3050.665
277  1424.00        1092.137         1110.2174       1476.492
278  1108.17        1528.406         1540.3575       1529.187
279  3104.70        2944.451         2940.3125       2946.628
280  2177.20        2828.179         2836.5662       2706.864
281  2193.20        1641.498         1644.6901       2004.379
282  1810.59        2081.464         2087.8279       1967.067
283  1666.10        1561.426         1571.5568       1766.751
284  2027.39        1472.311         1485.0501       1915.456
285  2345.50        3126.133         3130.0769       2679.027
286  3310.20        3011.772         3010.9532       3199.220
287  3777.20        2884.511         2878.4614       3136.643
288  2063.43        1585.373         1574.7557       1698.501
289  4378.37        4164.254         4157.3127       4054.339
290  1853.91        1737.577         1745.8276       1987.378
291  3774.00        3354.137         3362.0251       3318.810
292  1625.46        1713.675         1712.9939       1742.316
293  1044.07        1271.445         1280.7092       1426.413
294  1423.70        1745.834         1747.0350       1570.035
295  3037.39        3264.513         3267.4854       3043.601
296  2610.00        3052.354         3062.8884       2781.194
297  3193.98        3480.765         3479.9722       3243.305
298  1602.63        2229.188         2225.4512       1875.574
299  2457.68        3285.181         3286.8230       2909.370
300  1474.60        1628.706         1627.3779       1694.544
301   997.89        1431.588         1427.4710       1333.704
302  4451.84        4047.461         4033.0282       3949.126
303  3507.10        3331.287         3341.3703       3386.129
304  3332.16        3467.620         3467.6341       3246.643
305  3733.10        3212.679         3214.1497       3301.496
306  1886.48        1912.787         1911.9204       1990.796
307  1175.69        1396.002         1393.0632       1358.239
308  1517.24        1317.045         1317.1867       1844.712
309  2036.20        2915.041         2912.1504       2377.633
310  2532.10        2368.507         2361.6117       2310.721
311  1392.78        1676.221         1685.1243       1702.797
312  2372.70        3041.284         3046.3185       2774.527
313  3239.66        3202.876         3215.3041       3214.149
314  1935.24        2122.539         2119.2763       2058.760
315  1344.35        1878.455         1881.7958       1634.292
316  1411.57        1344.244         1335.8715       1567.756
317  1712.00        2077.625         2074.0122       1901.206
318  2978.20        2986.220         2982.9972       3139.730
319  1948.80        3423.391         3424.1980       2655.798
320  1346.62        2019.387         2017.6645       1885.764
321  1380.61        1989.205         1995.6376       1909.081
322  1214.97        1812.490         1813.0534       1622.279
323  3622.80        3168.300         3167.6889       3141.464
324  3751.90        3009.375         3010.7492       3320.045
325  2092.89        2321.030         2303.7623       2559.630
326  3458.43        3123.946         3137.0371       3232.131
327  2789.70        3120.812         3127.2381       3047.259
328  2303.58        1917.330         1916.9827       2275.298
329  2030.50        2162.061         2159.5244       2229.379
330  1439.57        1826.728         1837.5538       1717.227
331  2471.60        3181.973         3180.8807       2877.682
332  1097.60        1503.438         1509.1215       1486.931
333  1464.29        1547.889         1550.2984       1758.278
334  3243.29        2949.707         2958.3391       3196.397
335  2654.70        2081.760         2079.6383       2346.054
336  3609.33        3418.077         3425.6590       3391.887
337  3060.70        3392.820         3394.4500       3017.696
338  1374.48        1656.248         1660.0135       1621.747
339  1451.50        1135.461         1144.7828       1530.642
340  1503.55         973.785          989.8539       1494.118
341  2027.60        2702.367         2678.7908       2437.125
342  3046.72        3015.803         3016.9165       3108.418
343  2485.00        2830.571         2806.4608       2455.151
344  1731.80        1883.050         1884.5676       1911.827
345  1958.27        2232.296         2225.3000       2012.805
346  2996.40        3213.626         3215.4839       3053.526
347  1288.64        1907.697         1912.3864       1578.546
348  2353.40        3020.431         3019.9432       2552.630
349  3016.30        3063.343         3066.8408       3082.212
350  3306.15        3176.953         3179.4228       3111.106
351   826.43        1525.419         1513.5919       1348.316
352  1338.20        1478.099         1472.6168       1513.226
353  1490.93        1452.322         1458.1048       1654.928
354  1067.56        1661.808         1662.6232       1460.740
355  2472.90        3210.084         3211.9609       2781.050
356  1085.93        1819.709         1830.0230       1511.110
357  2278.97        2816.581         2796.2701       2414.965
358  1898.00        1704.732         1704.9722       1863.288
359  1208.74        1325.510         1309.4964       1337.491
360  3593.55        2899.403         2897.9885       3200.940
                  model
1     linear regression
2     linear regression
3     linear regression
4     linear regression
5     linear regression
6     linear regression
7     linear regression
8     linear regression
9     linear regression
10    linear regression
11    linear regression
12    linear regression
13    linear regression
14    linear regression
15    linear regression
16    linear regression
17    linear regression
18    linear regression
19    linear regression
20    linear regression
21    linear regression
22    linear regression
23    linear regression
24    linear regression
25    linear regression
26    linear regression
27    linear regression
28    linear regression
29    linear regression
30    linear regression
31    linear regression
32    linear regression
33    linear regression
34    linear regression
35    linear regression
36    linear regression
37    linear regression
38    linear regression
39    linear regression
40    linear regression
41    linear regression
42    linear regression
43    linear regression
44    linear regression
45    linear regression
46    linear regression
47    linear regression
48    linear regression
49    linear regression
50    linear regression
51    linear regression
52    linear regression
53    linear regression
54    linear regression
55    linear regression
56    linear regression
57    linear regression
58    linear regression
59    linear regression
60    linear regression
61    linear regression
62    linear regression
63    linear regression
64    linear regression
65    linear regression
66    linear regression
67    linear regression
68    linear regression
69    linear regression
70    linear regression
71    linear regression
72    linear regression
73    linear regression
74    linear regression
75    linear regression
76    linear regression
77    linear regression
78    linear regression
79    linear regression
80    linear regression
81    linear regression
82    linear regression
83    linear regression
84    linear regression
85    linear regression
86    linear regression
87    linear regression
88    linear regression
89    linear regression
90    linear regression
91    linear regression
92    linear regression
93    linear regression
94    linear regression
95    linear regression
96    linear regression
97    linear regression
98    linear regression
99    linear regression
100   linear regression
101   linear regression
102   linear regression
103   linear regression
104   linear regression
105   linear regression
106   linear regression
107   linear regression
108   linear regression
109   linear regression
110   linear regression
111   linear regression
112   linear regression
113   linear regression
114   linear regression
115   linear regression
116   linear regression
117   linear regression
118   linear regression
119   linear regression
120   linear regression
121    LASSO regression
122    LASSO regression
123    LASSO regression
124    LASSO regression
125    LASSO regression
126    LASSO regression
127    LASSO regression
128    LASSO regression
129    LASSO regression
130    LASSO regression
131    LASSO regression
132    LASSO regression
133    LASSO regression
134    LASSO regression
135    LASSO regression
136    LASSO regression
137    LASSO regression
138    LASSO regression
139    LASSO regression
140    LASSO regression
141    LASSO regression
142    LASSO regression
143    LASSO regression
144    LASSO regression
145    LASSO regression
146    LASSO regression
147    LASSO regression
148    LASSO regression
149    LASSO regression
150    LASSO regression
151    LASSO regression
152    LASSO regression
153    LASSO regression
154    LASSO regression
155    LASSO regression
156    LASSO regression
157    LASSO regression
158    LASSO regression
159    LASSO regression
160    LASSO regression
161    LASSO regression
162    LASSO regression
163    LASSO regression
164    LASSO regression
165    LASSO regression
166    LASSO regression
167    LASSO regression
168    LASSO regression
169    LASSO regression
170    LASSO regression
171    LASSO regression
172    LASSO regression
173    LASSO regression
174    LASSO regression
175    LASSO regression
176    LASSO regression
177    LASSO regression
178    LASSO regression
179    LASSO regression
180    LASSO regression
181    LASSO regression
182    LASSO regression
183    LASSO regression
184    LASSO regression
185    LASSO regression
186    LASSO regression
187    LASSO regression
188    LASSO regression
189    LASSO regression
190    LASSO regression
191    LASSO regression
192    LASSO regression
193    LASSO regression
194    LASSO regression
195    LASSO regression
196    LASSO regression
197    LASSO regression
198    LASSO regression
199    LASSO regression
200    LASSO regression
201    LASSO regression
202    LASSO regression
203    LASSO regression
204    LASSO regression
205    LASSO regression
206    LASSO regression
207    LASSO regression
208    LASSO regression
209    LASSO regression
210    LASSO regression
211    LASSO regression
212    LASSO regression
213    LASSO regression
214    LASSO regression
215    LASSO regression
216    LASSO regression
217    LASSO regression
218    LASSO regression
219    LASSO regression
220    LASSO regression
221    LASSO regression
222    LASSO regression
223    LASSO regression
224    LASSO regression
225    LASSO regression
226    LASSO regression
227    LASSO regression
228    LASSO regression
229    LASSO regression
230    LASSO regression
231    LASSO regression
232    LASSO regression
233    LASSO regression
234    LASSO regression
235    LASSO regression
236    LASSO regression
237    LASSO regression
238    LASSO regression
239    LASSO regression
240    LASSO regression
241 random forest model
242 random forest model
243 random forest model
244 random forest model
245 random forest model
246 random forest model
247 random forest model
248 random forest model
249 random forest model
250 random forest model
251 random forest model
252 random forest model
253 random forest model
254 random forest model
255 random forest model
256 random forest model
257 random forest model
258 random forest model
259 random forest model
260 random forest model
261 random forest model
262 random forest model
263 random forest model
264 random forest model
265 random forest model
266 random forest model
267 random forest model
268 random forest model
269 random forest model
270 random forest model
271 random forest model
272 random forest model
273 random forest model
274 random forest model
275 random forest model
276 random forest model
277 random forest model
278 random forest model
279 random forest model
280 random forest model
281 random forest model
282 random forest model
283 random forest model
284 random forest model
285 random forest model
286 random forest model
287 random forest model
288 random forest model
289 random forest model
290 random forest model
291 random forest model
292 random forest model
293 random forest model
294 random forest model
295 random forest model
296 random forest model
297 random forest model
298 random forest model
299 random forest model
300 random forest model
301 random forest model
302 random forest model
303 random forest model
304 random forest model
305 random forest model
306 random forest model
307 random forest model
308 random forest model
309 random forest model
310 random forest model
311 random forest model
312 random forest model
313 random forest model
314 random forest model
315 random forest model
316 random forest model
317 random forest model
318 random forest model
319 random forest model
320 random forest model
321 random forest model
322 random forest model
323 random forest model
324 random forest model
325 random forest model
326 random forest model
327 random forest model
328 random forest model
329 random forest model
330 random forest model
331 random forest model
332 random forest model
333 random forest model
334 random forest model
335 random forest model
336 random forest model
337 random forest model
338 random forest model
339 random forest model
340 random forest model
341 random forest model
342 random forest model
343 random forest model
344 random forest model
345 random forest model
346 random forest model
347 random forest model
348 random forest model
349 random forest model
350 random forest model
351 random forest model
352 random forest model
353 random forest model
354 random forest model
355 random forest model
356 random forest model
357 random forest model
358 random forest model
359 random forest model
360 random forest model

## Create Plot
ggplot(plot_data, aes(x = observed)) +
  geom_point(aes(y = glm_predictions, color = "linear regression"), shape = 1) +
  geom_point(aes(y = lasso_predictions, color = "LASSO regression"), shape = 2) +
  geom_point(aes(y = rf_predictions, color = "random forest model"), shape = 3) +
  geom_abline(slope = 1, intercept = 0, linetype = "dashed", color = "black") + #add the 45 degree line
  labs(x = "Observed Values", y = "Predicted Values", title = "Observed versus Predicted Values for Machine Learning Models")

We see that the linear regression and LASSO models had very similar predictions compared to one another. The random forest model, which had the lowest RMSE, is also the closest to the 45 degree regression line. This indicates that it is the best performing model of the machine learning models tested. ## Model Tuning I will begin by tuning the lasso model and producing a plot for the tuned model using autoplot().

# LASSO tuning
lasso_grid <- 10^seq(-5, 2, length.out = 50) # create tuning grid
## I got help from ChatGPT for creating a tuning grid over that range from 1E-5 to 1E2 with 50 values on a log scale.

tune_lasso_wf <- workflow() %>%
  add_recipe(lasso_rec) %>%  # add the same recipe to the workflow
  add_model(
    linear_reg(penalty = tune()) %>%  # specify tuning penalty for LASSO model
      set_engine("glmnet"))

apparent_data <- apparent(data) # used to create an object with only tuning data

lasso_tune_grid <- tune_grid(
  object = tune_lasso_wf,  # Specify object as the workflow
  resamples = apparent_data, # use data for tuning from the apparent function
  grid = expand.grid(penalty = lasso_grid),  #  add tuning penalty grid
  control = control_grid(save_pred = TRUE)) # save the predictions

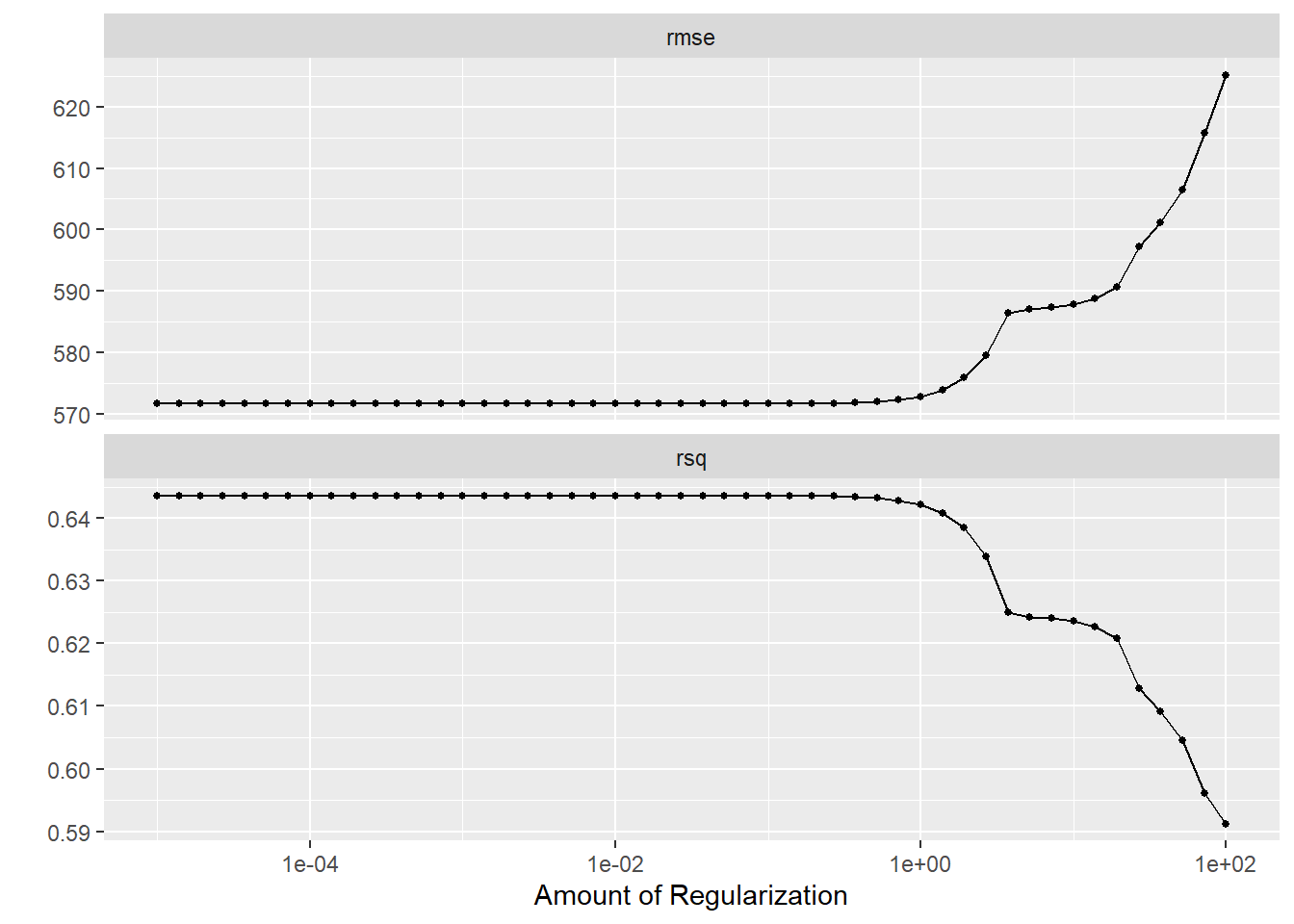

lasso_tune_grid %>%
  autoplot()

# Stop parallel processing
stopImplicitCluster()

We see that as the amount of regularization from the penalty term in the LASSO regression increases, the RMSE increases. As the penalty parameter goes up, the regularization of the coefficients go up. This makes the model less flexible, so it might not capture all the trend in the data as well if the penalty increases.The RMSE of the LASSO model never decreases below the linear model RMSE because the more regularized the model becomes, the more constrained it becomes. This means that predictive power will decrease as the penalty term increases, which is reflected by RMSE increasing and not decreasing.

# Tree tuning
tune_spec <-
  rand_forest(
    mtry = tune(), # parameters of random forest model to tune are the mtry, trees, and min_n
    trees = 300,
    min_n = tune()) %>%
  set_engine("ranger", seed = 1234) %>% # make sure to set seed again for the tree
  set_mode("regression")

apparent_data2 <- apparent(data)

## I used ChatGPT to help me define the tree grid for the parameters mtry and min_n
tree_grid <- grid_regular(mtry(range = c(1, 7)),
                          min_n(range = c(1, 21)),
                          levels = 7) # make a grid with 7 levels with the specified                                          parameters from above

rf_tune_wf <- workflow() %>% # create workflow
  add_recipe(rf_rec) %>% # add recipe from earlier
  add_model(tune_spec) # add spec that is defined above

rf_res <- rf_tune_wf %>%
  tune_grid(
    resamples = apparent_data2, # use data from the apparent function
    grid = tree_grid) # use the specified grid above

rf_res %>%
  autoplot()

Tuning with Cross-validation

# Cross validation folds
folds_data <- vfold_cv(data, v = 5, repeats = 5)
# Set the number of cores to use
num_cores <- detectCores() - 1
# Initialize parallel backend
doParallel::registerDoParallel(cores = num_cores) # add parallel processing to speed up the computations

set.seed(rngseed) # set seed for reproducibility

lasso_cv_grid <- tune_grid(
  object = tune_lasso_wf,  # Specify object as the workflow
  resamples = folds_data, # use data for tuning from the CV folds
  grid = expand.grid(penalty = lasso_grid),  #  add lasso tuning penalty grid
  control = control_grid(save_pred = TRUE)) # save the predictions

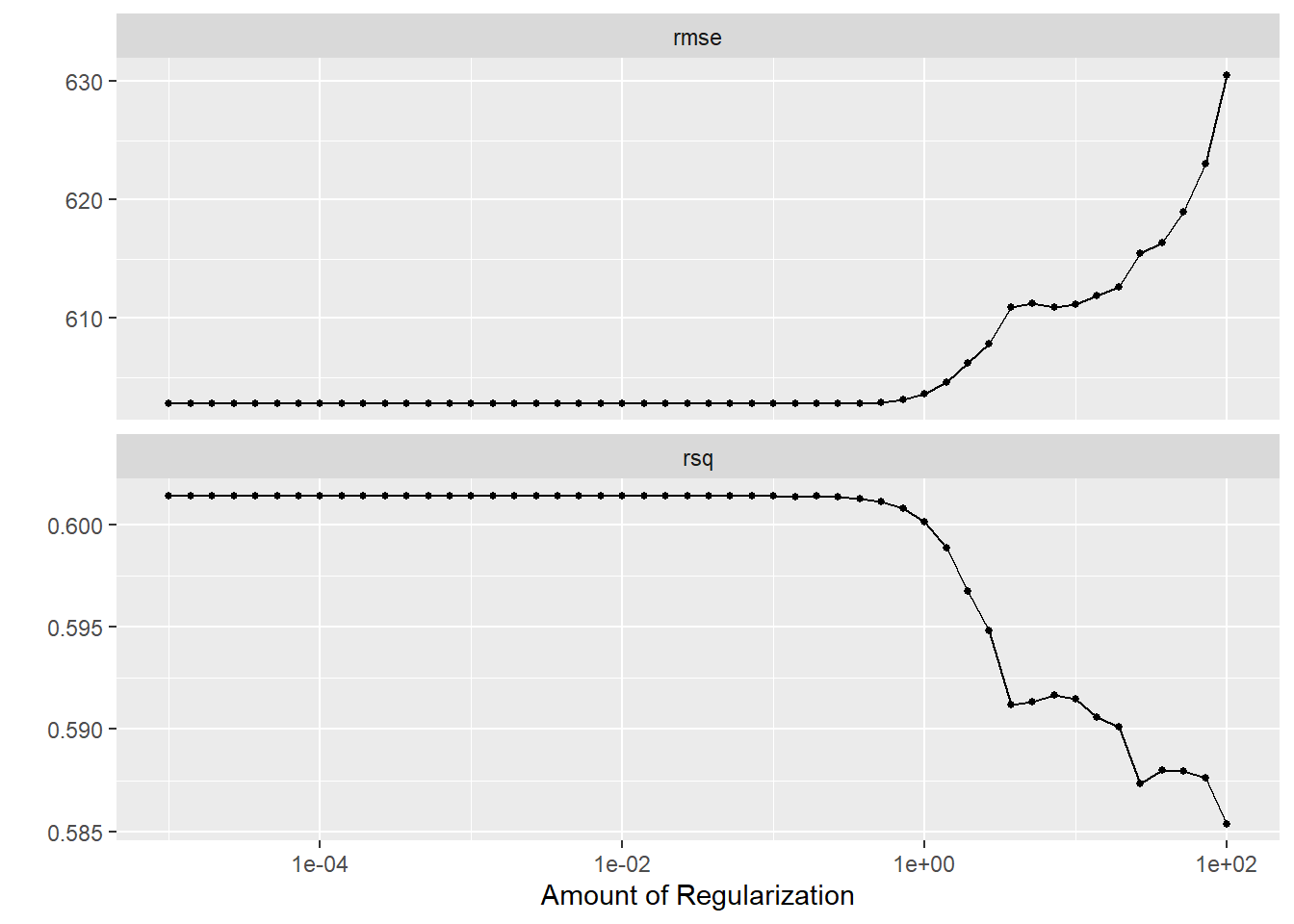

lasso_cv_grid %>%
  autoplot()

# Stop parallel processing
stopImplicitCluster()

# RF Tree Model
##I looked for how to do parallel processing with ChatGPT
# Set the number of cores to use
num_cores <- detectCores() - 1

# Initialize parallel backend
doParallel::registerDoParallel(cores = num_cores)

set.seed(rngseed) # set seed for reproducibility

rf_res <- rf_tune_wf %>%
  tune_grid(
    resamples = folds_data, # use data from the CV folds
    grid = tree_grid)
rf_res %>%
  autoplot()

# Stop parallel processing
stopImplicitCluster()

The RMSE from the CV-tuned LASSO model has increased relative to the RMSE from the model tuned without CV. The LASSO model tuned without CV produced very similar RMSE values to the linear model and un-tuned model because it is essentially the same thing as the linear regression model above. At a small penalty value, the RMSE of the LASSO regression is best, for both tuned models. The random forest model that was tuned with CV also had an increase in RMSE compared to the one tuned without CV. In the RF tuned with CV, we observe that the trees with different minimum node sizes follow a closer pattern in the RMSE graph than the trees from the RF model tuned without CV. The LASSO model tuned with cross validation has a better RMSE than the RF model tuned with CV, despite this being the opposite case when they were tuned using the data itself. The RMSE of both models increased with cross validation, but to different magnitudes. This is because cross-validation is more representative of a real scenario where trained data would be compared to testing data to see if the predictions are the same as the observations. The random forest model RMSE was more affected by cross validation, perhaps, because it was less suited to real life. The model was fit to its own data when it was tuned the first time, which led to over-fitting. Because the random forest model was likely over-fit, compared to the LASSO model, the random forest model is not as suitable for real life. The best performing model, in my opinion, is the LASSO model, though it is not much different than the linear regression model.
